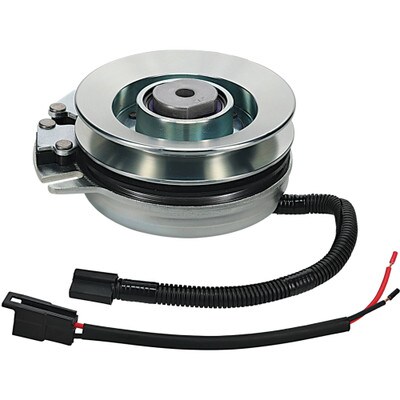

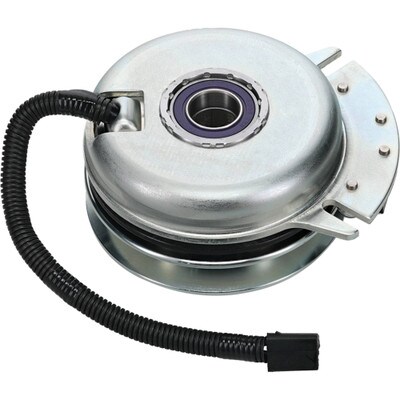

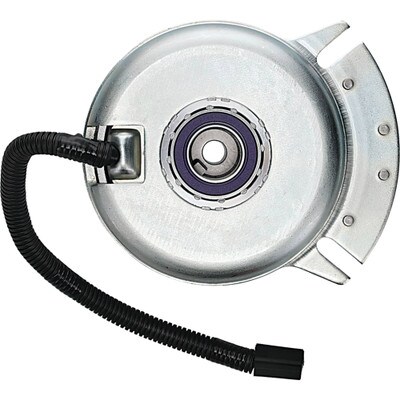

Stens X0003

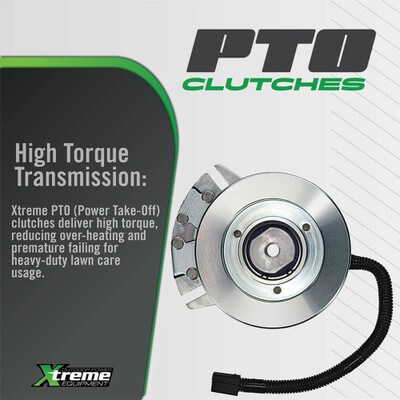

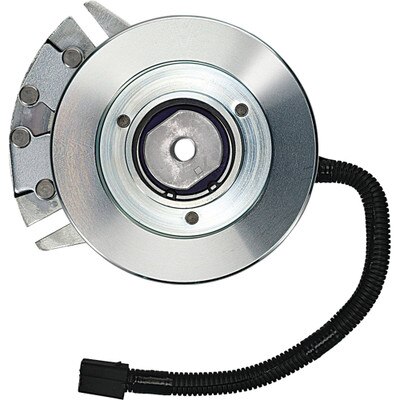

Xtreme PTO Clutch

Cat. Page
574
Description
Xtreme PTO Clutch
John Deere AM119683
Replaces OEM
  • Ariens03643100
  • AXXOM892595
  • AYP160889, 532160889, 53740
  • Bolens1772388, 717-1459, 917-1459, GW-1772388
  • Craftsman03643100, 160889, 1772388, 532160889, 53740, 688EC, 7053740, 7053740S, 7053740SM, 717-1459, 917-1459, GW-1772388
  • Cub Cadet1772388, 504-01698, 717-1459, 917-1459, GW-1772388
  • Dixon160889, 532160889
  • Electrolux160889, 532160889
  • Exmark104-3334
  • Ford/New HollandTR105D3462
  • Gravely03643100
  • Husqvarna160889, 532160889
  • John DeereAM119683
  • Jonsered160889, 532160889
  • Kees160889, 532160889
  • Massey Ferguson160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
  • McCulloch160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
  • MTD1772388, 504-01698, 717-1459, 917-1459, GW-1772388
  • Poulan160889, 532160889
  • Roper160889, 532160889
  • Snapper53740, 7053740, 7053740S, 7053740SM
  • Snapper Pro53740, 7053740
  • Swisher688EC
  • Toro104-3334
  • Troy-Bilt1772388, GW-1772388
  • Warner5217-27, 5217-28, 5217-35, 5217-6, 5217-7, 5217-9
  • White1772388, 717-1459, 917-1459, GW-1772388
  • Woods03643100
  • Yazoo160889, 532160889
Fits Models
  • AriensEZR, LT, Mini Zoom, Sierra, Sport Zoom, YT and Zoom series
  • Cub Cadet1300, 13A-130F100 and 1405, 13A-145F100
  • ExmarkQuest, Serial No. 790,000 and higher, with 42" deck
  • Gravely1440 series, GLT 440, GLT448, Mini ZT, Sport ZT and ZT series
  • HusqvarnaLTH15-LTH145, LTH130, LTH140, LTH150, LTH160, YTH1542A, YTH1542B, YTH1542D, YTH1542E, YTH1746A, YTH1746B, YTHK1542A, YTHK1542B and YTHK1746B
  • John DeereSTX38 and STX46, Serial No. 270,000 and lower; black decks
  • ScottsSTX38 and STX46, Serial No. 270,000 and lower; black decks
  • SnapperLT145H, LT160H and LTH180H; Yard Cruiser, series 0, 1 and 2; YZ Yard Cruiser, series 1 and 2, with 33" and 38" deck
  • Snapper ProLT145H, LT160H and LTH180H; Yard Cruiser, series 0, 1 and 2; YZ Yard Cruiser, series 1 and 2, with 33" and 38" deck
  • ToroDH-150, DH-170, DH-190, DH-200, DH-210 and DH-220; RTZ480H, Serial No. 280000001-290999999; TimeCutter 14-38Z, 16-38Z and 16-42Z, Serial No. 230000001-240999999; TimeCutter Z420, Serial No. 250000001-270999999, Z4200, Serial No. 230000001-290999999, Z4220 and Z4202, Serial No. 280000001-290999999; and ZD420 and ZD420T, Serial No. 260000001-311999999
  • Troy-BiltLTX13095, LTX13102, LTX13103, LTX13105, LTX13123 and LTX13104
  • WoodsR1540
    • Specs

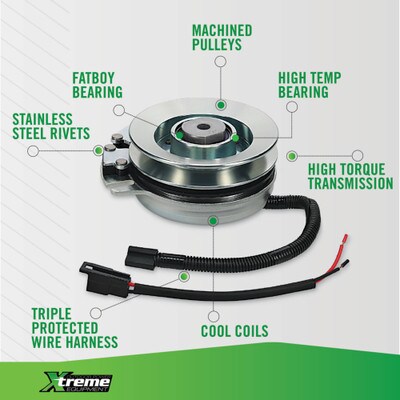

  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications

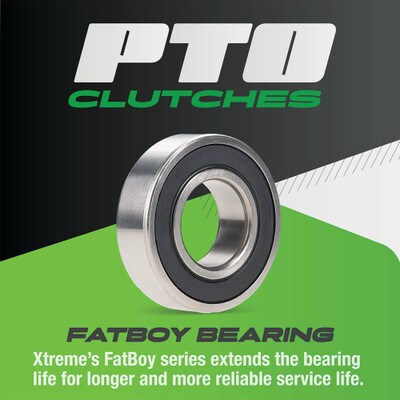

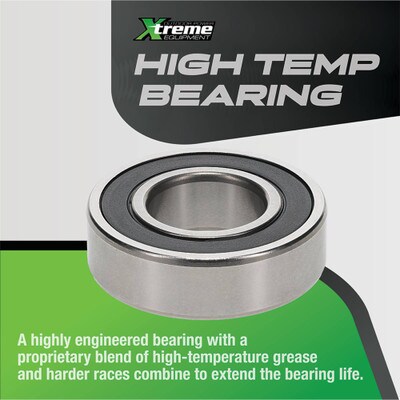

  • High performance bearings with high temperature grease
  • Replaceable Pulley Bearing

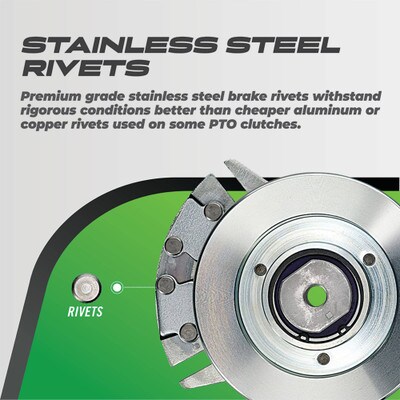

  • Stainless steel rivets and bands

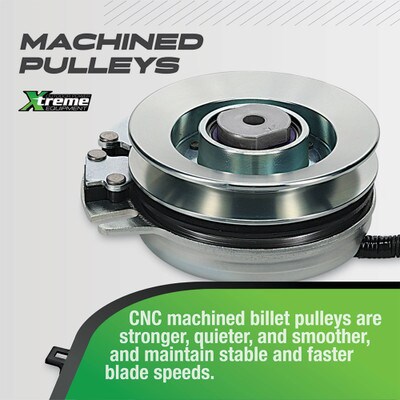

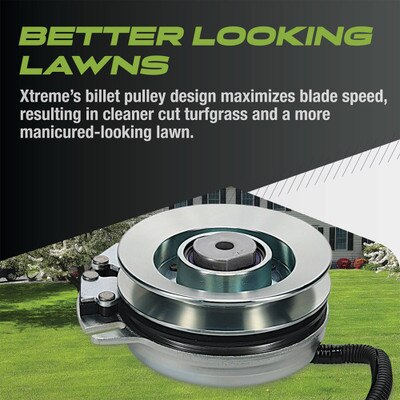

  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"

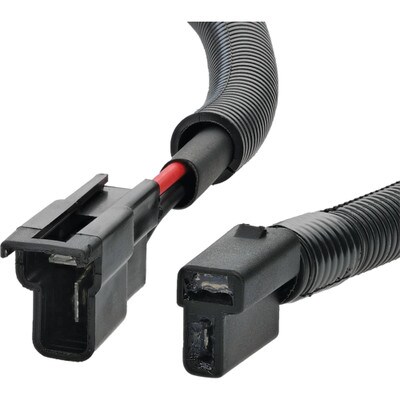

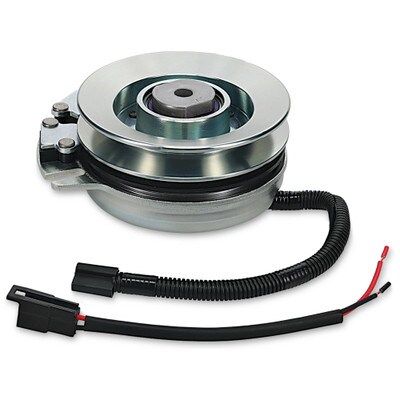

  • IncludesClutch side and mower side wire harnesses
  • Pulley Diameter5 3/8"
  • Rotation DirectionCounter Clockwise
    • Additional Info

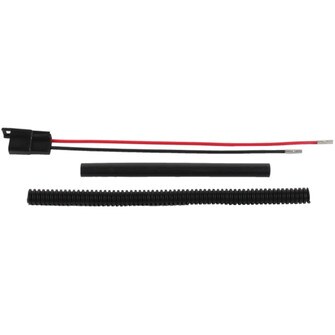

  • Cross SellX0003 Use with XMC1003 Wire Harness Repair Kit
